GREEN ROOF SYSTEM
*TWO TYPES OF GREEN ROOF SYSTEMS
1. Lay & Plant In-Place – DAKU GREEN ROOF SYSTEM
2. Tray Systems – HELLOGREEN GREEN ROOF SYSTEM

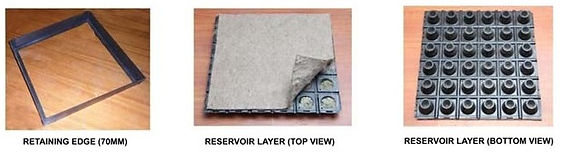

HELLOGREEN GREEN ROOF SYSTEM
*TRAY or LAY & PLANT-IN-PLACE SYSTEM
*100% Virgin Recyclable High Density Polypropylene (HDPP)
*Panel size: 500 x 500 x 65
*BioMat
*Polyester & Hemp Fibre
*Retains 12 Liters Water / m2
*Rockwool Filling
*Modular & Interlocking
*Tray Collar: 70mm Deep
Combine with:
*NURAPLAN Membrane for Additional Waterproofing & Protection from Root Intrusion
*PLANTING SUBSTRATE – SAME AS DAKU
*Light Weight : 1m2 = 110kg
*Long Life Span
*Beneficial for Plants
AUTOMATIC DRIP IRRIGATION
*Laid on the Planting Substrate
Surface or Embedded In the Planting Substrate
*Subterranean Irrigation Method
*Plants Require Less Water
*Plants Grow More Vigorously
*Increases Plant Longevity
*Reduces Risk of Insect Infestation
*Reduces Soil Algae
Centralized Controller
*Communications Capability
*Fault Reporting
Centralized Fertigator for Large Green Roofs
*Netafim Solenoids, Emitters, Piping, Fittings
*Galcon Controller with Fault Monitoring & Reporting
*Dosatron Fertigator
*2 Year Warranty on Electronics, 7 Year on Plastic
DAKU Green Roof System
Comprises of:
1.Nuraplan Waterproofing Membrane
2.DAKU FSD 20 Element
3.DAKU Stabilfilter
4.DAKU Roof Garden Substrate
5.Plants
6.Light Weight = 100kg/m2

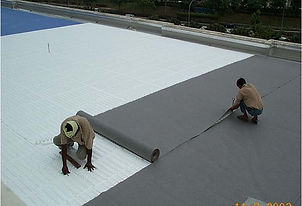

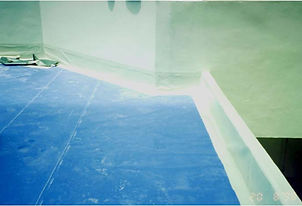

NURAPLAN Waterproofing Membrane
*Waterproofs the roof against water seepage
*Protects the roof slab
*Tough & Durable
*Root Resistant
*Rot Proof
*Complies to FLL Guidelines
(Green Roof Association in Germany) for root resistance
DAKU FSD 20 Element
*High density pressure molded polystyrene
*Protects waterproofing membrane
*Provide thermal insulation – 0.6 m2K/W
*Collects rain water - 16 l/m2 (Water Conservation)
*Water drainage – 0.03 l/sec/m2
*Extensively tested for usage in Roof Gardens
*Passed requirements in FLL Guidelines
DAKU Stabilfilter
*Polypropylene/polyester filter fabric 230 gsm
*Tough & Durable
*Good capillary actions for water distribution
*Prevents choking of roof outlets
*Passed requirements in FLL Guidelines

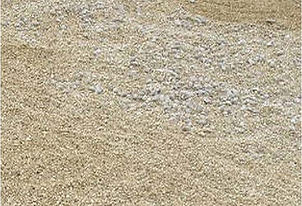

DAKU Roof Garden Substrate
*Light weight planting media
*Good drainage capacity – 0.32 l/sec/m2
*Well granulated particles to prevent consolidation
and allows good root-anchoring
*High nutrient absorption capacity – 130 mmol/z/l
*Good water absorption capacity – 39%
*Tested in accordance to FLL Guidelines
*14 Years Experience
